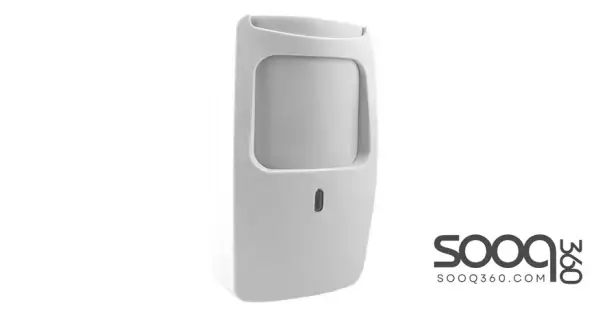

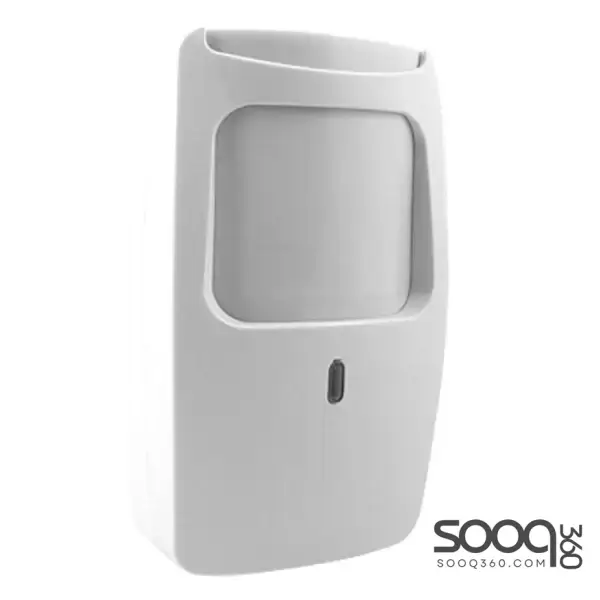

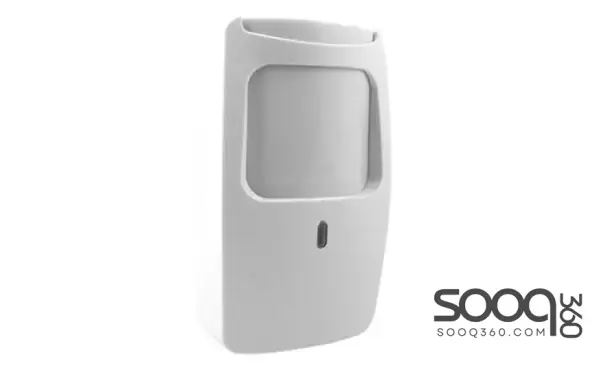

Dual Infrared Microwave DT-7225 Digital Motion Detector PIR Alarm:
Specifications:
- Range : 25’ x 30’ (7.6 m x 9 m)
- Alarm Relay : Energized Form A500 mA, 30 VDC
- Power Requirements : 7.5 - 16VDC 25mA
- AC Ripple: 3V peak-to-peak at 12VDC nominal
- Frequencies : 24.125GHz (K-Band)
- PIR White Light Immunity : 6500 LUX typical
- RFI Immunity : 30V/m, 10MHz - 1000MHz
- Operating Temperature :14° to 131° F (-10° to 55° C) 5% - 95% relative humidity (noncondensing)
- PIR Fields of View
- 22 long range edges
- 12 intermediate edges
- 6 lower edges
- 4 look-down edges
- Dimensions : 4.685” x 2.795” x 1.654” (11.9 cm x 7.1 cm x 4.2 cm)
- Sensitivity : 2-4 steps within field of view
- Accessories
- SMB-10 Swivel Mount Bracket
