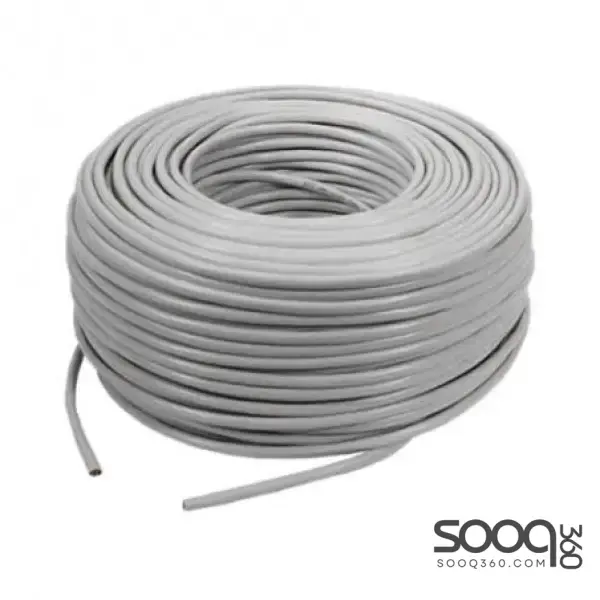

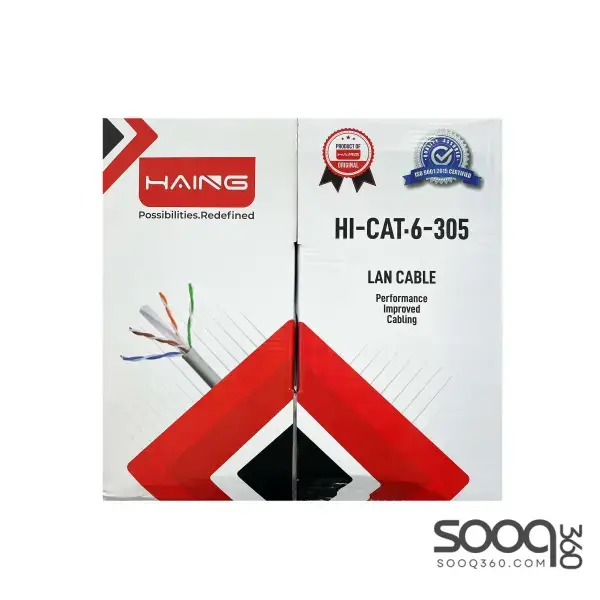

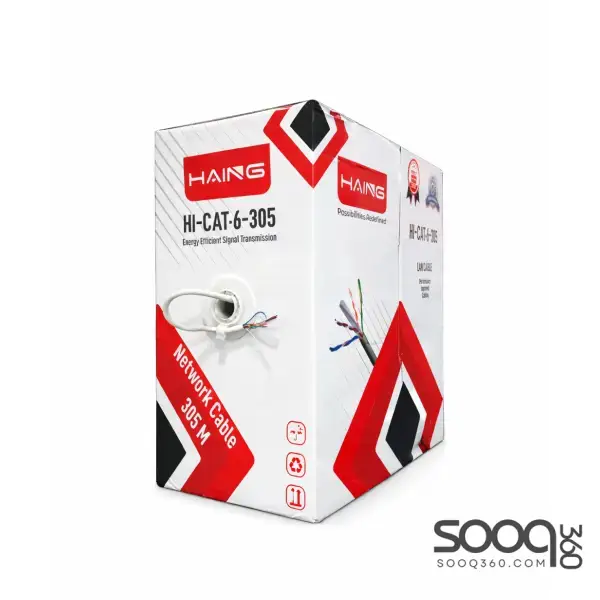

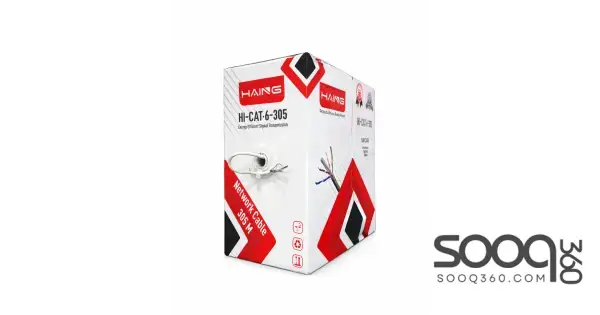

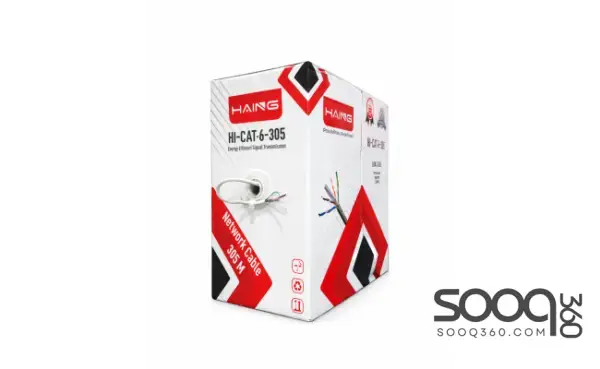

HAING CB-CAT6-305M Cat6 UTP Cable Drum 305M:
Specifications:
- Inner Conductor : 0.5mm CCA
- Conductor Size : 23AWG OR 24 AWG or Stranding or Solid Bare Copper
- Conductor Material : BC/CU/CCA/CCS or customized
- No.of Conductor : 4P
- Insulation Material : PE , HDPE
- Jacket : PVC, ROHS PVC, LSZH PVC
- Shield : Unshielded twisted pairs
- Filler : PE cross
- Indoor/Outdoor : Single Jacket
- Insulation Thickness : 0.2mm
- Jacket Thickness : 0.92-0.95mm
- Stretching Resistance : (max)400N
- Impedance : 100±15%Ω at 1~250MHz
- Transmission Velocity : 66%
- Operating Temperature : -40 °C – +70 °C
- Reference Standard : YD/T1019-2001, ANSI/TIA/EIA-568B, ISO/IEC11801
